Low Alloy 09CrCuSb ND Steel Tube For Boiler Steam

Brand Name : TOBO/TPCO/TISCO/VALIN/METAL

Model Number : 1.4835 Stainless Steel Seamless Pipe

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 0.5-1 tons

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 7500 tons per year

Delivery Time : 15days->

Packaging Details : in plastic bags then in bundles

Standard : DIN, ANSI, ISO, GB, JIS

Application : Fluid pipe,Structure Pipe

Surface： : Annealed & Pickled, Bright Annealing, Polished

Types : Seamless

Thickness : 0.5-100mm

Outer Diameter : 6-813mm

Material : Carbon Steel,Stainless Steel,alloy steel,Brass,copper

Sample : Provided,Free,Available free within 7days

Contact Now

China factory manufacturing Low alloy 09CrCuSb (ND steel) tube for boiler steam

Overview
Quick Details
Application:
Boiler Pipe
Alloy Or Not:
Is Alloy
Section Shape:
Round
Special Pipe:
ND steel
Outer Diameter:
20 - 512 mm
Thickness:
2 - 50 mm
Standard:
GB, ASTM, GB 5310-1995, GB 5130, ASTM A312-2007
Grade:
10Cr9Mo1VNb, 10MoWVNb, 10CRMO910, 1Cr13Mn9Ni1N, 10Cr9Mo1VNb, 10MoWVNb, Cr-Mo alloy, CrNi alloy
Surface Treatment:
other
Tolerance:
±1%
Processing Service:
Bending, Welding, Cutting
Secondary Or Not:
Non-secondary
Product name:
ND steel
Material:
09CrCuSb
Keyword:
Low alloy 09CrCuSb
Usage:
boiler steel tube
Name:
ND BOILER STEEL TUBE
Technique:
Cold Drawn
Certification:
other
Type:
Seamless Steel Pipe
Supply Ability
Supply Ability
50000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
bundled with steel strip,wood pallet, or as per customer's requirement
Port
shanghai/tianjin
Picture Example:
Lead Time:
Quantity(Tons) 1 - 20 >20
Est. Time(days) 15 To be negotiated
Product Description

Low alloy steel-09CrCuSb (ND steel) for sulfuric acid proof dew point corrosive seamless steel tube.


1.Standard
Q/TDGG0039-2004
GB 150.2-2011

2.Purpose
It is widely used in power plants and refineries to make the economizer, air preheater, heat exchanger and evaporator to resist the corrosion of sulfur containing flue gas.

3.Equivalent

ND steel Equivalent to Corten steel

4.Advantages

Weathering steel has many advantages over mild steel for structures that are outside and exposed to the elements.
Environment – weathers to natural brown which blends with the surrounding environment.
Strength – increased strength allows for weight savings vs mild carbon steel.
Cost savings – saves the cost of initially painting or coating the steel and the subsequent maintenance cost over its lifetime. Costs less than mild steel that has been coated.
Protection – develops its own protective coating which slows the rate of corrosion
Appearance – weathering steel changes and improves with age giving it great curbside appeal.

Mechanical properties of ND steel (09CrCuSb)

Tensile strength (Mpa):390-550
Yield strength (Mpa):≥245
Elongation (%):≥25

Chemical composition of ND steel (09CrCuSb)

C: ≤0.10
Si:0.20-0.40
Mn:0.35-0.65
Cr:0.70-1.20
Cu:0.25-0.45
Sb:≤0.10
S:≤0.10
P:≤0.10

Detailed Images

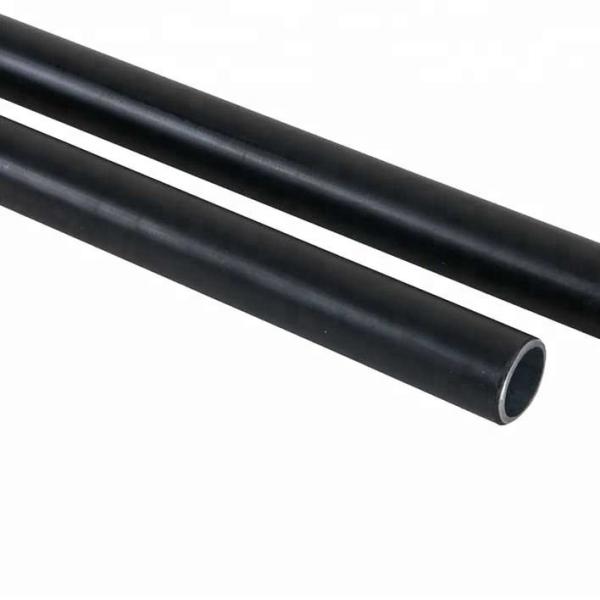

Low Alloy 09CrCuSb ND Steel Tube For Boiler Steam
Low Alloy 09CrCuSb ND Steel Tube For Boiler Steam
Low Alloy 09CrCuSb ND Steel Tube For Boiler Steam

FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
