Butt Weld Straight Cross Fittings Stainless Steel Hygienic Fittings 15 Bar Pressure

  • 1
  • 2

Brand Name : TOBO/TPCO/TISCO/VALIN/METAL

Model Number : 1.4835 Stainless Steel Seamless Pipe

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 0.5-1 tons

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 7500 tons per year

Delivery Time : 15days->

Packaging Details : in plastic bags then in bundles

Standard : DIN, ANSI, ISO, GB, JIS

Sample : Provided,Free,Available free within 7days

Application : Fluid pipe,Structure Pipe

Outer Diameter : 6-813mm

Surface : Annealed & Pickled, Bright Annealing, Polished

Thickness : 0.5-100mm

Material : Carbon Steel,Stainless Steel,alloy steel,Brass,copper

Types : Seamless

Contact Now

Butt Weld Straight Cross Fittings Stainless Steel Hygienic Fittings 15 Bar Pressure

Overview
Quick Details
Customized support:
OEM, ODM
Place of Origin:
China
Technics:
Forged
Connection:
Welding
Shape:
Reducing
Head Code:
Square, Round
Material:
316L Stainless Steel
Dimensions According To:
ASME BPE
Size:
1/4" ~ 6"
Main Type:
Straight Type, Short Type
Connection End:
Butt Weld
Application:
Cross Connection Between Pipe Lines Pharmaceuticalindustries
High Light:
sanitary stainless fittings, stainless steel hygienic fittings
Surface treatment:
Mirror Polished
Certification:
Reach, IECEE
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Bubber Paper First
Then Carton Box, Pallet Or Plywood Case
Also Can According To Your Request
Port
SHANGHAI, NINGBO
Picture Example:

Butt Weld Straight Cross Fittings Stainless Steel Hygienic Fittings 15 Bar Pressure
Characteristics:
ASME BPE sanitary butt weld cross fittings are commonly used for pipelines in hygienic pharmaceutical and bioprocess industries.

* Material should be AISI 316L only
* Working pressure is 15 ~ 25 bar at temperature 20 degrees centigrade
* Packing: The cross fittings are cleaned, oil and grease free, dry and packed with plastic caps
* Surface finishing: two choices available

a. Ra max. 0.5μm mechanical polished
b. Ra max. 0.375μm polished and then electrolytic polished

We can also provide material certificate if neccessary
Technical Details:
Material
316L stainless steel
Size
1/4" ~ 6"
Standards
3A
Main types
Standard type, straight type
Working pressure
15 bar
Working temperature
-10 °C ~ +140 °C
Surface treatment
pharmaceutical grade Ra<0.4μm

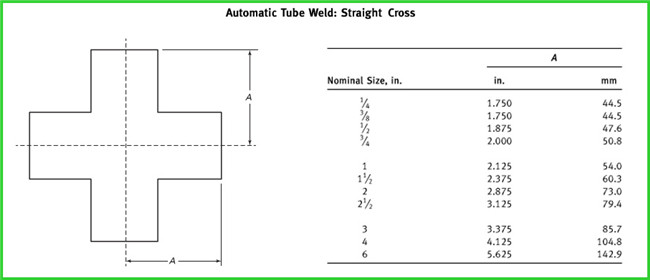

Dimensions
Butt Weld Straight Cross Fittings Stainless Steel Hygienic Fittings 15 Bar Pressure

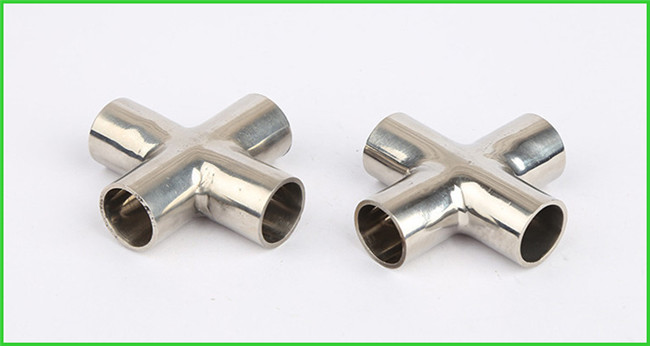

Photo Gallery:
Butt Weld Straight Cross Fittings Stainless Steel Hygienic Fittings 15 Bar Pressure
Butt Weld Straight Cross Fittings Stainless Steel Hygienic Fittings 15 Bar Pressure

FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
